Dew point measurement
The measurement of the pressure dew point is performed by means of hygrometers, which allow to measure the temperature of the pressure dew point.
- For adsorption dryer: from -100°C to 20°C:
- with an accuracy of +/- 2°C,
- 4-20 mA two-wire output,
- 12-24 VDC power supply,
- IP65 protection,
- stainless steel version,
- 5/8" UNF connection.

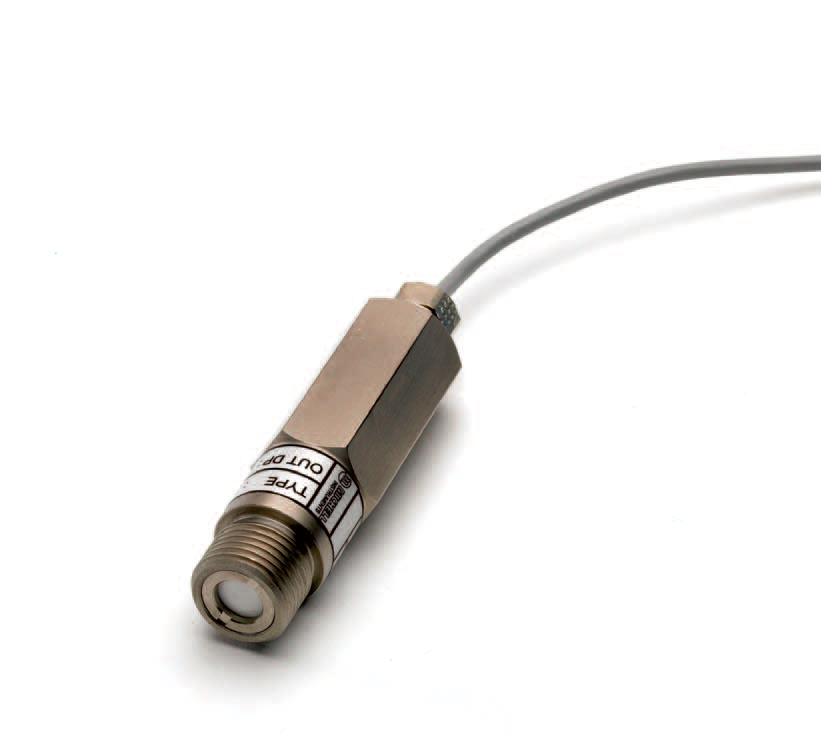

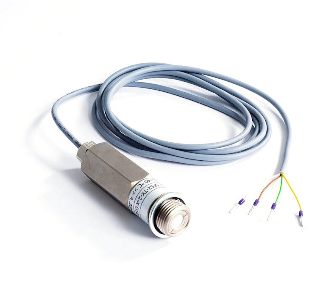

- For refrigeration dryer: from -60°C to 40°C:
- with accuracy of +/- 2°C,
- 4-20 mA three-wire output,
- 8-30VDC power supply,
- IP65 ,
- nickel-plated brass,
- open wire cable 2m,
- 1/2" BSP connection.
