Ultrasonic detectors

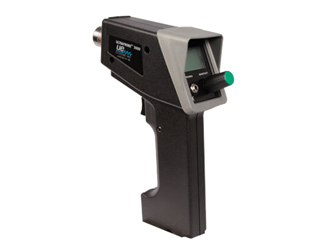

UP3000 type of detector in addition to the location of leaks, is equipped with a digital display system (measured value in dB), sensitivity control system and memory for 400 measured values of the leakages.

This device helps us to determine the cost of leakage while use the software, which allows to create the work order for leaks repair with the ability to monitor the value of made repairs.. It has a stepless control of sensitivity from '0' to '70'. There are 3 modules: scanning module, parabolic (long-range) module and stethoscope module. There is also a rubber focusing probe insulating ultrasound background which can be used with scanning and stethoscope module.

• Measurement of compressed air and gases leakage size with numerical readout in dB.
• Store up to 400 measurements in the memory of the detector.
• Control the sensitivity of the measurement (smooth control knob 0 - 70).

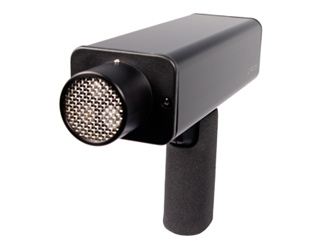

Another instrument ideal for all audit work is larger, but still light detector UP9000. EX version available.

UP9000 has all the functionality of its predecessors. Besides it opens new opportunities connected with precise analysis of structureborne ultrasound. This handy pistol detector is equipped with a highly sensitive directional microphone based on three quartz crystals. Furthermore, it has a frequency control of measurement, which allows to distinguish the ultrasound coming from different sources. Thanks to this, it facilitates to make accurate measurements. It allows you to make a benchmarking and trend analysis (bearing diagnosis and clear facilitate to make other measurements) with the help of a comprehensive and affordable computer application.

• Highly sensitive directional ultrasonic microphone.
• Measurement of compressed air and gases leakage size with numerical readout in dB.
• Store up to 400 measurements in the memory of the detector.
• Control the sensitivity of the measurement (smooth control knob 0 - 70).
• Control the measurement frequency (distinguish between the types of ultrasound).
• Trends and comparative diagnostics (PC).

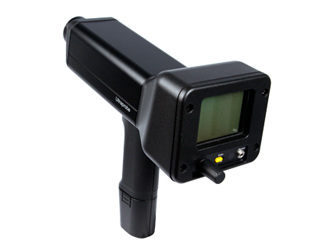

UP10000 is a versatile instrument for the noninvasive diagnosis of maintenance services.

The highest accuracy is here combined with versatility. This detector uses the display gives easy access to the stored readouts and audio files. Features such as benchmarking and trend analysis, previously possible only through the cooperation of the detector and the computer. Now it can be done instantaneously using only UP10000. Also stored data management is clearly extended. It is allowed to connect results in the form of a tree and moving to the level of the application the actual plant construction with division into production lines, buildings and processes. Systems responsible for receiving ultrasound are identical to the detector UP9000.

• Highly sensitive directional ultrasonic microphone.
• Measurement of compressed air and gases leakage size with numerical readout in dB.
• Store up to 1000 measurements in the memory of the detector.
• Control the sensitivity of the measurement (control on the scale of the visible readout value).
• Control the measurement frequency (distinguish between the types of ultrasound).
• Recording sound files.
• Trends and comparative diagnostics.
• The ability to measure the moving parts - magnetic probe (standard).
• Large, easy to read display.
• File management - a reconstruction of the structure of the plant at the file level.
• Support for SD memory cards.

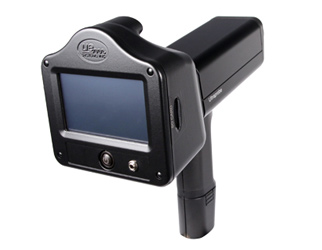

The most modern and the most complex pistol detector is UP15000.

This detector has all the functionality of the older models and a series of upgrades and improvements. It replaced the display touch screen, which significantly facilitates navigation in the menu and operate on stored data. To meet the needs of the measuring works in the detector built a laser pointer, a camera (pictures are very important part of the leak detection reports) and temperature measurement system. It is a complex measurement instrument ideal for plants which will measure energy carriers, technical gases and mechanical systems. It combines features which allow for easily being equal to all these challenges and accurately report the extent of the work done.

• Highly sensitive directional ultrasonic microphone.
• Measurement of compressed air and gases leakage size with numerical readout in dB.
• Store up to 1000 measurements in the memory of the detector.
• Control the sensitivity of the measurement (control on the scale of the visible readout value).
• Control the measurement frequency (distinguish between the types of ultrasound).
• Recording sound files.
• Trends and comparative diagnostics.
• The ability to measure the moving parts - magnetic probe (standard).
• Large touch screen (easy menu navigation and operation of stored files).
• File management - a reconstruction of the structure of the plant at the file level.
• Support for SD memory cards.
• Built-in laser pointer (point is visible at the photo for explicit location).
• Built-in camera (pictures automatically connected with readout or sound file)
• Built-in temperature measurement.
•  Ultrasonic detectors, are instruments that perfectly meet the diagnostic functions in the study of bearings and electrical equipment.
